X-based VNC server

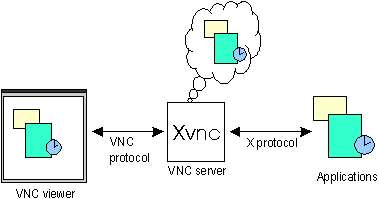

Xvnc is the Unix VNC server, which is based on a standard X server.  Applications can display themselves on it as if it were a normal X display, but they will actually appear on any connected VNC viewers rather than on a physical screen.

So Xvnc is really two servers in one. To the applications it is an X server, and to the remote VNC users it is a VNC server. By convention we have arranged that the VNC server display number will be the same as the X server display number, which means you can use eg. snoopy:2 to refer to display 2 on machine 'snoopy' in both the X world and the VNC world.

Normally you will start Xvnc using the vncserver script, which is designed to simplify the process, and which is written in Perl. You will probably want to edit this to suit your preferences and local conditions. We recommend using vncserver rather than running Xvnc directly, but Xvnc has essentially the same options as a standard X server, with a few extensions. Running Xvnc -h will display a list.

As mentioned in Getting Started , vncserver can be run with no options at all. In this case it will choose the first available display number, start Xvnc as that display, and run a couple of basic applications to get you started. You can also specify the display number, in which case it will us that number if it is available and exit if not, eg:

Run with the -help argument to see the other options. The important ones are as follows:

-name name

Each desktop has a name which may be displayed by the viewer. It defaults to 'X' but you can change it with this option.

-geometry widthxheight

Specify the size of the desktop to be created. Default is 1024x768.

-depth depth

Specify the pixel depth in bits of the desktop to be created. Default is 8.

-pixelformat format

Specify pixel format for server to use (BGRnnn or RGBnnn)

-alwaysshared

Always treat new clients as shared (i.e. ignore client's shared flag).

-nevershared

Never treat new clients as shared (i.e. ignore client's shared flag).

-dontdisconnect

Don't disconnect existing clients when a new "non-shared" connection comes in. Instead the new connection is refused. New "shared" connections are still allowed in the normal way.

-localhost

Only allow connections from the same machine. Useful if you use SSH and want to stop non-SSH connections from any other hosts. See the guide to using VNC with SSH

-cc n

Sets the colour Visual class used by the server. Some X applications don't cope too well with the TrueColor visual normally used by an 8-bit-deep Xvnc.   You can make the server use a PseudoColor visual by specifying -cc 3.

-economictranslate

The server normally uses a lookup table for translating pixel values when the viewer requests a different format from the native one used by the server.  This can use up to 256Kbytes per connected viewer, so if you have many viewers you may wish to specify this option which will save memory at the expense of a little bit of speed. Only relevant for 16-bit-deep desktops.
